HTTP Complete Journey

(For backend API journeys only) Sends a custom HTTP response to the calling application, completing the journey.

Description

The HTTP Complete Journey step is a core component of Backend API Journeys, designed to finalize backend-to-backend workflows by generating a structured HTTP response. It is specifically tailored for responding to RESTful API calls, making it ideal for integrations requiring data processing, validation, or authentication.

This step allows you to define the response type and payload, including the HTTP status code and any additional data, to meet the specific requirements of the calling application. Common use cases include signaling success or failure and returning data for integration with external systems.

By default, the HTTP Complete Journey step is included in all journeys created using the Backend API (single call) journey type, ensuring seamless completion of backend workflows.

To learn more About backend API journeys, see our dedicated page.

Configuration

Field Description
Response Code The HTTP status code and description to return in the response (e.g., 200 OK for success or 400 Bad Request for error). Supports 2xx, 3xx, 4xx, and 5xx status codes with their descriptions.
Redirect URI The URI to include in the Location header for redirection responses (3xx). For example, https://www.demoapp.com/login?error=auth_failed.
Response Headers Custom headers to include in the HTTP response, such as Cache-Control, X-Custom-Header, etc.
Response Type The format of the response body, which determines the Content-Type header. Supports text, json, and html.
Body The content of the response body.

Example: Transaction validation journey

This example demonstrates how the HTTP Complete Journey step is used to respond to a backend API call that validates a transaction. The journey evaluates two conditions:

  1. Access and ID token expiration : Verifies the validity of the external_access_token provided by an external system.
  2. Multi-Factor Authentication (MFA) : Checks whether MFA has been performed using the amr claim from the external_id_token .

Journey logic flow

  • If the external tokens have expired, the journey rejects the transaction with a 401 Unauthorized response.
  • If MFA has not been performed, the journey triggers a client journey with a 307 Temporary Redirect response.
  • If both conditions are satisfied, the journey approves the transaction with a 200 OK response.

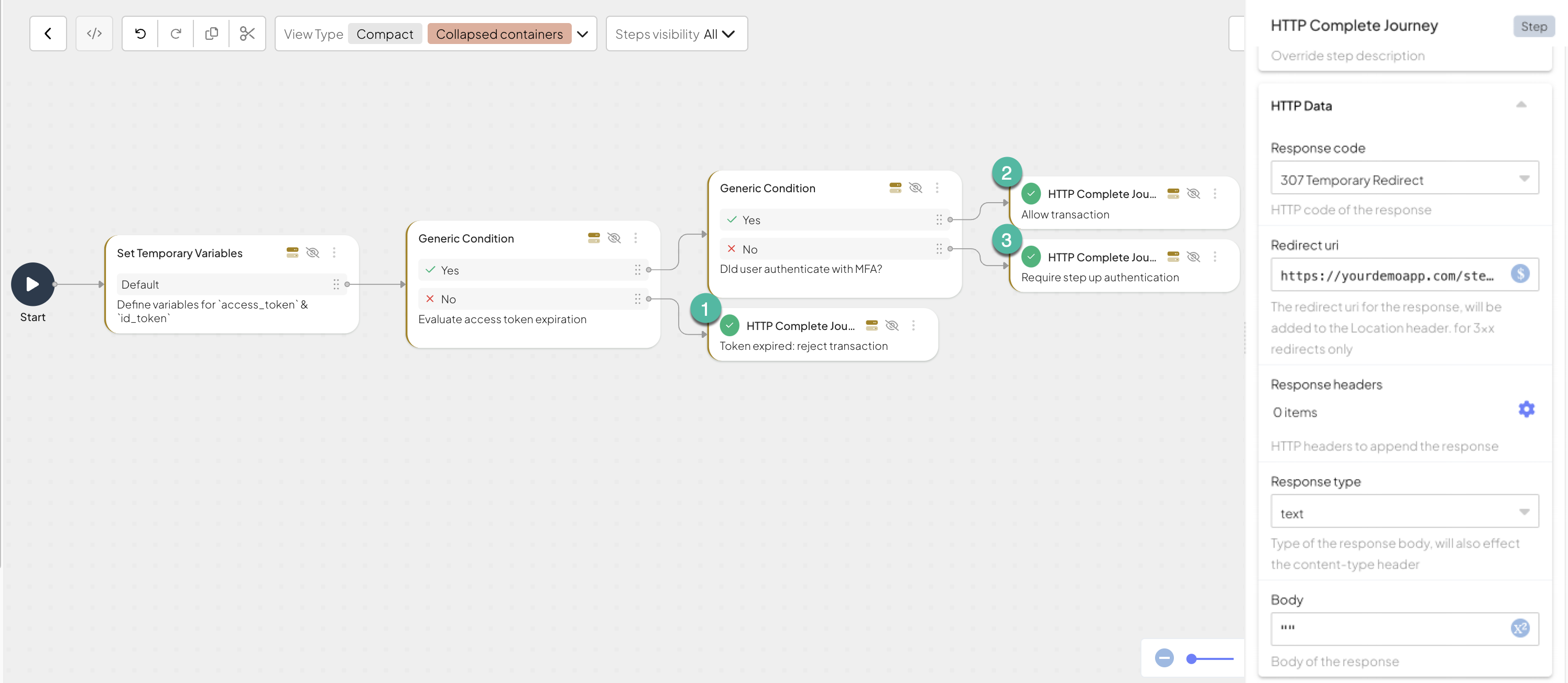

HTTP Complete Journey step example
Click to open the image in a dedicated tab.

HTTP Complete Journey step configurations

Below are the configurations for each HTTP Complete Journey step in this example:

Step Description Response Code Redirect URI Response Type
1 Rejects the transaction due to expired external tokens 401 Unauthorized
2 Approves the transaction 200 OK
3 Triggers step-up authentication 307 Temporary Redirect https://yourdemoapp.com/stepup text

Backend API call example

To invoke the journey, use the following curl command:

Copy
Copied
curl -X POST "https://api.transmitsecurity.io/ido/api/v2/invoke-api-journey/[JOURNEY_ID]?clientId=[CLIENT_ID]" \
--header "Content-Type: application/json" \
--header "Authorization: Bearer <[CLIENT_TOKEN]>" \
--data '{
  "external_access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVC...",
  "external_id_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVC..."
}'
Note

The Authorization header must include a Mosaic client access token to validate the backend API call. For more details, see our Get Client Access Token API reference.
