Verify documents with Mosaic UI using iOS SDK

You can use identity verification to securely verify the identity of your customers using documents like their driver’s license or passport—such as before allowing them to open a new bank account online or pick up a rental car. This guide describes how to leverage UI provided by Mosaic and quickly integrate identity verification into your iOS application using our iOS SDK, including both the client-side and backend integration.

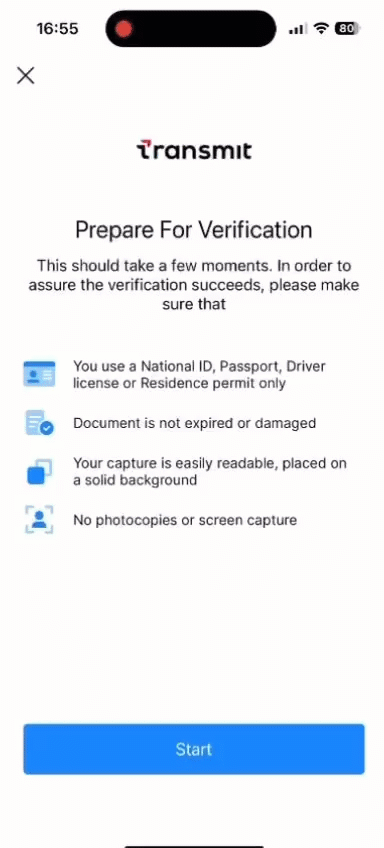

To get a better understanding of the user experience, check out the video below. Note that for privacy reasons, the real document verified in this demo was blurred during video processing.

How it works

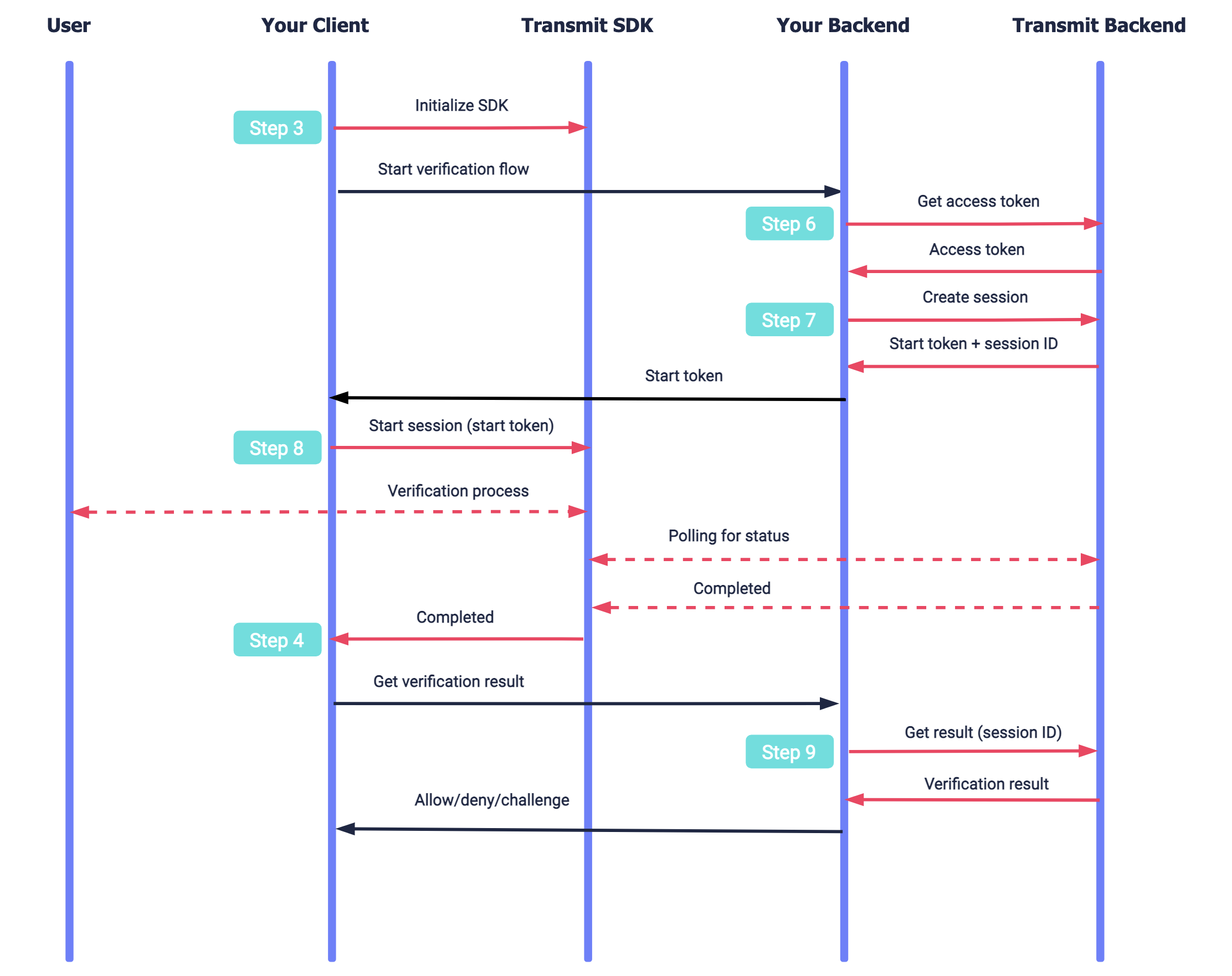

Here's an example of a basic integration flow. Mosaic APIs are shown in pink along with the relevant integration step.

After initializing the SDK (Step 3), your app starts a verification flow by creating a session in the backend to establish a secure context (Step 6 and Step 7) and then starting the session (Step 8). The SDK executes the verification process with the user using the Mosaic identity verification experience. Once all the required images are submitted, Mosaic starts processing the verification while the SDK polls for its status. Once processing is completed, the SDK presents a screen with the received status. When the user chooses to finish the flow, the SDK notifies the app (Step 4) so it can obtain the verification result (Step 9) and proceed accordingly (Step 10).

Requirements

• iOS 13+
• Xcode 11+

Step 1: Configure your app

To integrate with Mosaic, you'll need to configure an application.

From the Applications page, create a new application or use an existing one. From the application settings:

• For Client type , select native
• For Redirect URI , enter your website URL. This is a mandatory field, but it isn't used for this flow.
• Obtain your client ID and secret for API calls, which are autogenerated upon app creation.

Step 2: Add SDK to project

Add the SDK to your Xcode project so your application can access all the identity verification functionality.

• To use Swift Package Manager : install the SDK as a dependency in your Package.swift .
• To use CocoaPods : specify the SDK in your Podfile .

dependencies: [
    .package(url: "https://github.com/TransmitSecurity/identityVerification-ios-sdk.git", .upToNextMajor(from: "1.0.0"))
]

pod 'IdentityVerification', '~> 1.0.1'

Step 3: Initialize the SDK

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>credentials</key>
	<dict>
		<key>baseUrl</key>
		<string>https://api.transmitsecurity.io/</string>
		<key>clientId</key>
		<string>[CLIENT_ID]</string>
	</dict>
</dict>
</plist>

class AppDelegate: UIResponder, UIApplicationDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        TSIdentityVerification.initializeSDK()
        TSIdentityVerification.mosaicUIDelegate = self
        return true
    }
}

class SceneDelegate: UIResponder, UIWindowSceneDelegate {

    func scene(_ scene: UIScene, willConnectTo session: UISceneSession, options connectionOptions: UIScene.ConnectionOptions) {
        guard let _ = (scene as? UIWindowScene) else { return }

        TSIdentityVerification.initializeSDK()
        TSIdentityVerification.mosaicUIDelegate = self
    }
}

struct ExampleApp: App {
    private let idvObserver = IDVStatusObserver()

    init() {
        TSIdentityVerification.initializeSDK()
        TSIdentityVerification.mosaicUIDelegate = idvObserver
    }

    var body: some Scene {
        WindowGroup {
            ContentView()
        }
    }
}

private class IDVStatusObserver: TSIdentityVerificationMosaicUIDelegate {

    func mosaicUIVerificationDidComplete() {
        ...
    }

    func mosaicUIVerificationDidCancel() {
        ...
    }

    func mosaicUIVerificationDidFail(with error: IdentityVerification.TSIdentityVerificationError) {
        ...
    }
}

class AppDelegate: UIResponder, UIApplicationDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        TSIdentityVerification.initialize(clientId: [CLIENT_ID])
        TSIdentityVerification.mosaicUIDelegate = self
        return true
    }
}

class SceneDelegate: UIResponder, UIWindowSceneDelegate {

    func scene(_ scene: UIScene, willConnectTo session: UISceneSession, options connectionOptions: UIScene.ConnectionOptions) {
        guard let _ = (scene as? UIWindowScene) else { return }

        TSIdentityVerification.initialize(clientId: [CLIENT_ID])
        TSIdentityVerification.mosaicUIDelegate = self
    }
}

struct ExampleApp: App {
    private let idvObserver = IDVStatusObserver()

    init() {
        TSIdentityVerification.initialize(clientId: [CLIENT_ID])
        TSIdentityVerification.mosaicUIDelegate = idvObserver
    }

    var body: some Scene {
        WindowGroup {
            ContentView()
        }
    }
}

private class IDVStatusObserver: TSIdentityVerificationMosaicUIDelegate {

   func mosaicUIVerificationDidComplete() {
        ...
    }

    func mosaicUIVerificationDidCancel() {
        ...
    }

    func mosaicUIVerificationDidFail(with error: IdentityVerification.TSIdentityVerificationError) {
        ...
    }
}

Step 4: Observe status updates

Once a verification process has been initiated (as described in Step 8), the verification moves through different statuses. For example, the status will indicate if the process was completed successfully so the app can fetch the verification result. To observe status changes, add the extension shown below to the main class of your app.

Here are examples of adding the extension to your AppDelegate or SceneDelegate class:

extension AppDelegate: TSIdentityVerificationMosaicUIDelegate {

    /** Notifies when verification process completed, and the result can be obtained (via backend request). (Step 9) */
    func mosaicUIVerificationDidComplete() {
         ...
    }

    /** Notifies when verification process being canceled by user */
    func mosaicUIVerificationDidCancel() {
         ...
    }

    /** Notifies when verification error occurs. */
    func mosaicUIVerificationDidFail(with error: TSIdentityVerificationError) {
        print("Verification error: \(error)")
    }
}

extension SceneDelegate: TSIdentityVerificationMosaicUIDelegate {

    /** Notifies when verification process completed, and the result can be obtained (via backend request). (Step 9) */
    func mosaicUIVerificationDidComplete() {
         ...
    }

    /** Notifies when verification process being canceled by user */
    func mosaicUIVerificationDidCancel() {
         ...
    }

    /** Notifies when verification error occurs. */
    func mosaicUIVerificationDidFail(with error: TSIdentityVerificationError) {
        print("Verification error: \(error)")
    }
}

Step 5: Add camera permission

Your app requires camera permissions in order to capture the images required for the verification process.

To acquire camera permissions, open the Info.plist file as a Property List and add the following key: Privacy - Camera Usage Description. The key value contains an explanation for why the permission is needed, which will be displayed to the user to approve. For example: This is needed to capture images for the verification process. The camera permissions will be obtained by the SDK.

Step 6: Get access tokens

An access token is required to authorize the backend API calls, such as for creating a verification session (Step 7) and obtaining the result (Step 9). When needed, obtain an access token using the /token request below.

import fetch from 'node-fetch';

async function run() {
  const formData = {
    client_id: '[CLIENT_ID]', // Replace with client ID obtained in Step 1
    client_secret: '[CLIENT_SECRET]', // Replace with client secret obtained in Step 1
    grant_type: 'client_credentials',
    resource: 'https://verify.identity.security'
  };

  const resp = await fetch(
    `https://api.transmitsecurity.io/oidc/token`,
    {
      method: 'POST',
      headers: {
        'Content-Type': 'application/x-www-form-urlencoded'
      },
      body: new URLSearchParams(formData).toString()
    }
  );

  const data = await resp.text();
  console.log(data);
}

run();

Step 7: Create session

Before your mobile app can initiate the verification process, your backend must create a session in order to provide a secure context for the flow. Create a session by sending the /verification request below.

import fetch from 'node-fetch';

async function run() {
  const resp = await fetch(
    `https://api.transmitsecurity.io/verify/api/v1/verification`,
    {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        Authorization: 'Bearer [ACCESS_TOKEN]' // Replace with access token obtained in Step 6
      }
    }
  );

  const data = await resp.json();
  console.log(data);
}

run();

The response contains a start_token that will be used to start the verification on the client side (in Step 8), and the session_id required to obtain the verification result (in Step 9). For example:

{
  "start_token": "ca766ed78c8c0b7824dfea356ed30b72",
  "session_id": "H1I12oskjzsdhskj4",
  "expiration": "2023-07-18T09:57:46.950Z",
  "missing_images": [
    "document_front",
    "document_back",
    "selfie"
  ]
}

Step 8: Start session

Once a session is created, initiate the verification process using the startMosaicUI() SDK method. Add the code below to your mobile app, passing the start_token value returned in the previous step. If successful, the SDK will start a verification process for the user and guide them through the entire identity verification flow using the Mosaic experience.

TSIdentityVerification.startMosaicUI(startToken: [START_TOKEN])

Step 9: Get verification result

Once the verification process starts, your mobile app can track its status using the extension added in Step 4.

After all the required images are successfully submitted, Mosaic automatically starts processing the verification and the SDK starts polling to check the status. If the status is completed, your backend should send the request below to obtain the verification result (see API reference):

import fetch from 'node-fetch';

async function run() {
  const sid = '[SESSION_ID]'; // Replace with session ID returned in Step 7
  const resp = await fetch(
    `https://api.transmitsecurity.io/verify/api/v1/verification/${sid}/result`,
    {
      method: 'GET',
      headers: {
        Authorization: 'Bearer [ACCESS_TOKEN]' // Replace with access token obtained in Step 6
      }
    }
  );

  const data = await resp.text();
  console.log(data);
}

run();

Step 10: Handle verification result

Your service should define the user experience based on the verification result, indicated by the recommendation field:

• If ALLOW : the identity verification process was completed successfully. The response includes user details collected from the document (like their name and birthday), which can be used to enrich the user's profile, and details about the document used to prove their identity.
• If CHALLENGE : the identity verification process didn’t succeed, since at least one verification check didn’t pass. The response includes extracted (yet unverified) info and indicates which checks didn't pass and why. This info can be used to review unsuccessful sessions or analyze failed verification attempts. You should proceed as suitable for your use case, typically by initiating a manual review process.
• If DENY : the identity verification indicates a high likelihood of attempted fraud. The response includes the extracted (yet unverified) info and indicates which checks didn't pass and why. You should block the user or initiate an in-depth manual review to avoid onboarding a fraudulent user.

Collected information is arranged inside nested objects: person, document, and additional_info.

Besides the composite verification result, the response provides information about individual checks inside the nested checks object.

Here's a response example for successful ID verification:

{
  "session_id": "H1I12oskjzsdhskj4",
  "status": "complete",
  "recommendation": "ALLOW",
  "person": {
    "full_name": "Marie Salomea Skłodowska-Curies",
    "given_name": "Marie",
    "surname": "Curies",
    "national_id": "123ABC",
    "date_of_birth": "1867-11-07T00:00:00.000Z"
  },
  "document": {
    "country": "US",
    "region": "NY",
    "type": "national_id",
    "number": "1234567",
    "serial_number": "1234567",
    "issue_date": "1867-11-07T00:00:00.000Z",
    "expiration_date": "1867-11-07T00:00:00.000Z"
  },
  "additional_info": {
    "address": {
      "country": "USA",
      "region": "Indiana",
      "city": "Indianapolis",
      "street": "Snowy Ridge Road",
      "house_number": "1234",
      "apartment_number": "12",
      "postcode": "56789",
      "full_address": "1234 Snowy Ridge Road Indianapolis, IN 56789"
    },
    "national_status": {
      "citizen": true,
      "resident": true
    },
    "employment": {
      "profession": ""
    }
  },
  "checks": {
    "document_validation": {
      "recommendation": "ALLOW"
    },
    "document_authentication": {
      "recommendation": "ALLOW"
    },
    "document_liveness": {
      "recommendation": "ALLOW"
    },
    "biometric_matching": {
      "recommendation": "ALLOW"
    },
    "biometric_liveness": {
      "recommendation": "ALLOW"
    },
    "flagged_identity": {
      "recommendation": "ALLOW"
    },
    "risk_recommendation": {
      "recommendation": "ALLOW"
    }
  }
}

The response indicates when checks fail and why:

{
  "session_id": "string",
  "status": "complete",
  "recommendation": "DENY",
  // EXTRACTED DATA...
  "checks": {
    "document_validation": {
      "recommendation": "ALLOW"
    },
    "document_authentication": {
      "recommendation": "ALLOW"
    },
    "document_liveness": {
      "recommendation": "DENY",
      "reasons": [ "presentation_attack" ]
    },
    "biometric_matching": {
      "recommendation": "CHALLENGE",
      "reasons": [ "biometric_mismatch" ]
    },
    "biometric_liveness": {
      "recommendation": "DENY",
      "reasons": [ "mask detected" ]
    },
    "flagged_identity": {
      "recommendation": "DENY",
      "reasons": [ "multiple_same_identity_attempts" ]
    },
    "risk_recommendation": {
      "recommendation": "DENY",
      "reasons": [ "action_is_suspected_fraud" ]
    }
  }
}
